Talco’s expertise in the fire pump industry has yielded the premium pump and tank system for residential fire sprinklers. The Home Hydrant is available in three tank sizes, with five pumps to fit nearly any system requirement. Every tank and fitting is pressure tested in house along with a factory performance report for each pump. The tanks have been designed to keep the pump and other electrical components off the floor while maintaining the smallest foot print options available.

Request More Info
Where to Buy

Features & Specs

Asset 1

Each Home Hydrant Fire Pump System

Asset2

Is Tested Thoroughly,
Includes a Performance Report and Ships

Asset3

Completely Assembled

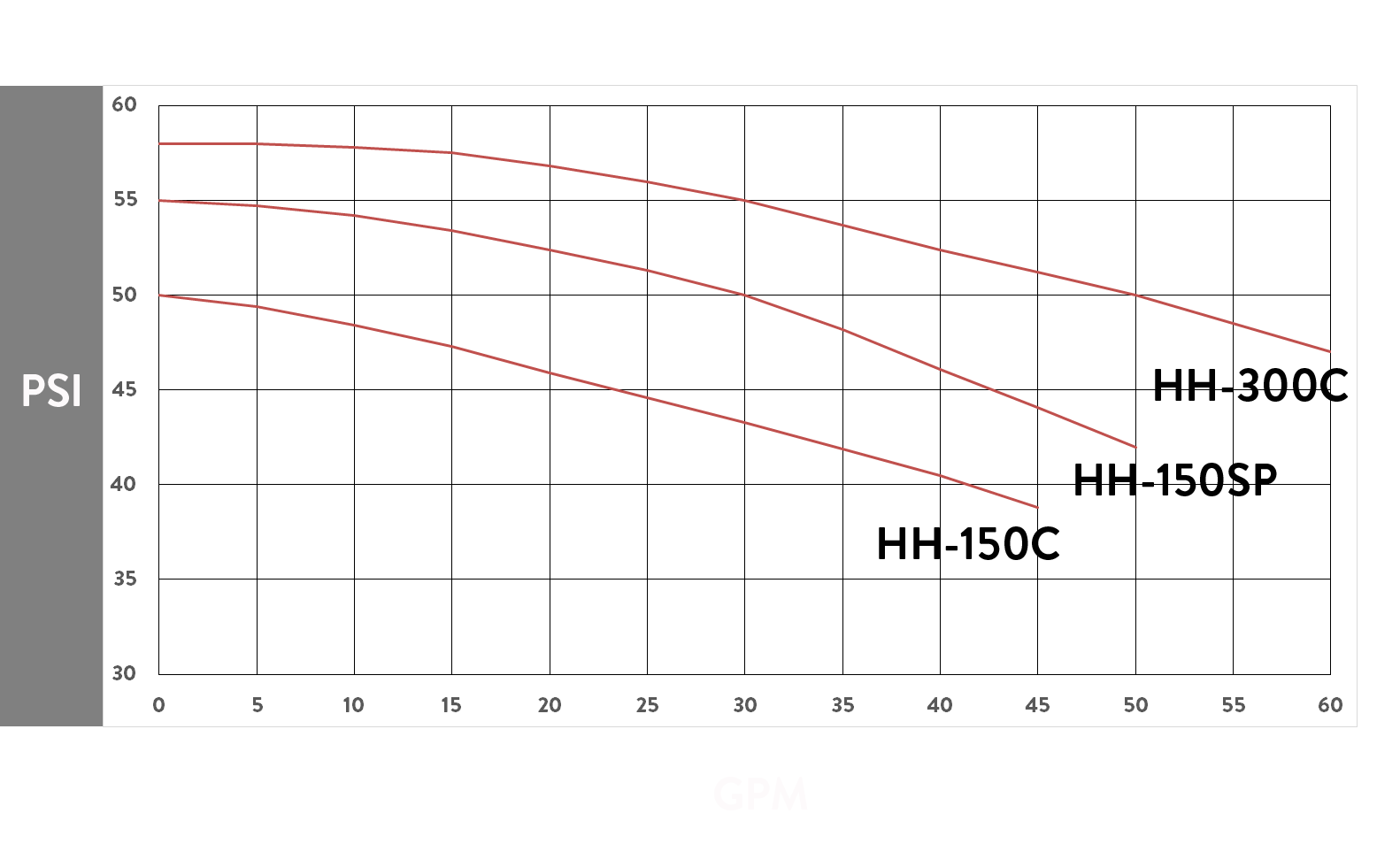

Pump Performance Curves

HH Curves All 2024

Water Storage Tank Sizes

water tanks

Installation is Quick & Easy

You'll need: access to your home water source, appropriate pipe wrenches and a 230V single phase power supply.

  1. Place Home Hydrant
  2. Connect water to supplied Auto Fill Valve
  3. Connect the Overflow Pipe
  4. Plumb discharge to Sprinkler System
  5. Wire incoming power to the Control Box
  6. Fill the Tank with water
  7.  Test the Home Hydrant
Talco_HomeHydrant

Home Hydrant Manuals

O&M Instruction Manual - optional flow switch
O&M Instruction Manual - Potable Water Model
Add Tank Arrangements (back to back view)
Add Tank Arrangements (side to side view)
G9sKMK24

HH2 Performance- 250 Gallon Tank

Model GPM 0 10 20 30 40 50 60
HH2-100A PSI 38 37 34 30 26 20
HH2-150SP PSI 55 55 52 50 46 40
HH2-150C PSI 48 47 45 43 40
HH2-200A PSI 67 63 56 50 43 35
HH2-300A PSI 74 72 65 54 47 41 33
HH2-300C PSI 59 59 58 56 53 50 47

We’ve made the Potter Flow Switch an option on our systems. If you choose to add a flow switch to your Home Hydrant, please add “FS” to the end of your model number when you’re placing your orders.

HH3 Performance- 350 Gallon Tank

Model GPM 0 10 20 30 40 50 60
HH3-100A PSI 38 37 34 30 26 20
HH3-150SP PSI 55 55 52 50 46 40
HH3-150C PSI 48 47 45 43 40
HH3-200A PSI 67 63 56 50 43 35
HH3-300A PSI 74 72 65 54 47 41 33
HH3-300C PSI 59 59 58 56 53 50 47

We’ve made the Potter Flow Switch an option on our systems. If you choose to add a flow switch to your Home Hydrant, please add “FS” to the end of your model number when you’re placing your orders.

HH4 Performance- 450 Gallon Tank

Model GPM 0 10 20 30 40 50 60
HH4-100A PSI 38 37 34 30 26 20
HH4-150SP PSI 55 55 52 50 46 40
HH4-150C PSI 48 47 45 43 40
HH4-200A PSI 67 63 56 50 43 35
HH4-300A PSI 74 72 65 54 47 41 33
HH4-300C PSI 59 59 58 56 53 50 47

We’ve made the Potter Flow Switch an option on our systems. If you choose to add a flow switch to your Home Hydrant, please add “FS” to the end of your model number when you’re placing your orders.

HH Potable Water Performance-

Model GPM 0 10 20 30 40 50 60
HH2-PW PSI 59 59 58 56 53 50 47
HH2-PW+PT PSI 59 59 58 56 53 50 47
HH3-PW PSI 59 59 58 56 53 50 47
HH3-PW+PT PSI 59 59 58 56 53 50 47
HH4-PW PSI 59 59 58 56 53 50 47
HH4-PW+PT PSI 59 59 58 56 53 50 47
